AXTAIR AUTOMORPHO® AXENSOR AT20

EFFICACY & RELIABILITY COUPLED WITH EASINESS TO USE

AXTAIR AUTOMORPHO® AXENSOR AT20

Pressure sore prevention aid for HIGH RISK patients.
Device indicated for patients who are bedridden for more than 15 hours without being lifted during the day, in poor general condition and/or with arteriopathy and/or a recent severe neurological disorder.
Assists in the treatment of stage 1 to 4 pressure sores, combined with a localised discharge or positioning system.

Braden Scale Score

23
18
14 12
5
hight
SLINGS FOR HOISTS LUNA for hospitals LUNA for nursing homes

Innovative range of motorised air supports

KEYS BENEFFIT

  • Improved quality of care and life for patients.
  • Easy to use for care staff

AXENSOR INNOVATION

  • LOCK’ KEY : Used to secure the compressor interface by manually or automatically or automatically locking the keypad to the various functions
  • VISUAL AND AUDIBLE ALARMS : Allows you to be informed of the cause of the last alarm recorded thanks to acoding system

AXENSOR INNOVATION

  • DYNAMIC MODE: Alternating pressure avoids prolonged vascular compression likely to lead to tissue hypoxia, thus preventing the development of pressure sores in at-risk subjects and treating patients with stage 1 to 4 pressure sores.
    STATIC MODE: Used to treat patients requiring immobilisation, to minimise secondary pain linked to trauma, to guarantee patient comfort and to carry out weaning phases before applying static support.
    SECURE CARE MODE: Makes it easier to handle the person being cared for during care and transfers
  • Timed mode (30 minutes)
  • After 30 minutes, the compressor automatically switches
    to the previously selected therapy mode

HEEL RELIEF

  • Relieves pressure in the heel area by unloading one or more cells at the foot of the mattress

AUTOMATIC CALCULATION OF CONTROL PRESSURE

  • The automatic inflation pressure adjustment sensor sensor, combined with AXENSOR technology, makes it possible to continuously modify its level to adapt it to the patient’s the patient’s morphology and position according to the angulation of the back section

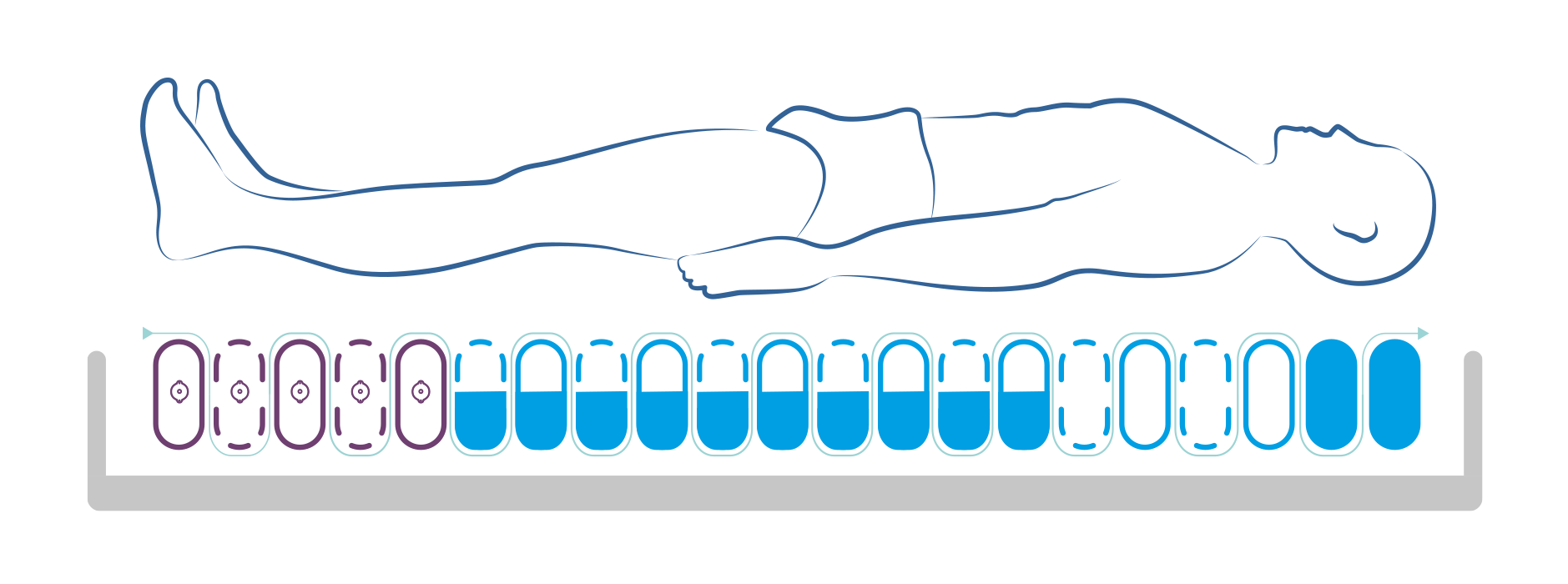

4 THERAPEUTIC ZONES

  • 2 static head cells
  • 4 cervico-dorsal cells
  • 10 cells around the sacrum area with an air base to guarantee stability
  • 5 heel cells with externally accessible heel discharges

VANNE CPR LATERAL

  • Deflates the mattress in less than less than 15 seconds to perform cardiac massage. (Cardio Pulmonary Rescue)

100% French manufacturing

All Winncare products are designed and manufactured in France thanks to our 4 production sites, anchored in our regions:
– Nîmes for bedsore prevention, hygiene and life aids products
– Miniac Morvan for bedsore prevention products
– Saint-Paul-Mont-Penit for medicalized beds
– Halluin for transfer and hygien products





Pressure area care

We offer a range of pressure sore prevention solutions designed to help you meet the ever-changing challenges of acute and long-term care facilities.

Contact our experts
close

Specifications

All-air mattress with 2 widths available:

4 therapeutic zones:
